Allpoints BURNER, I/R – BROILER – Allpoints Part 263691

Description

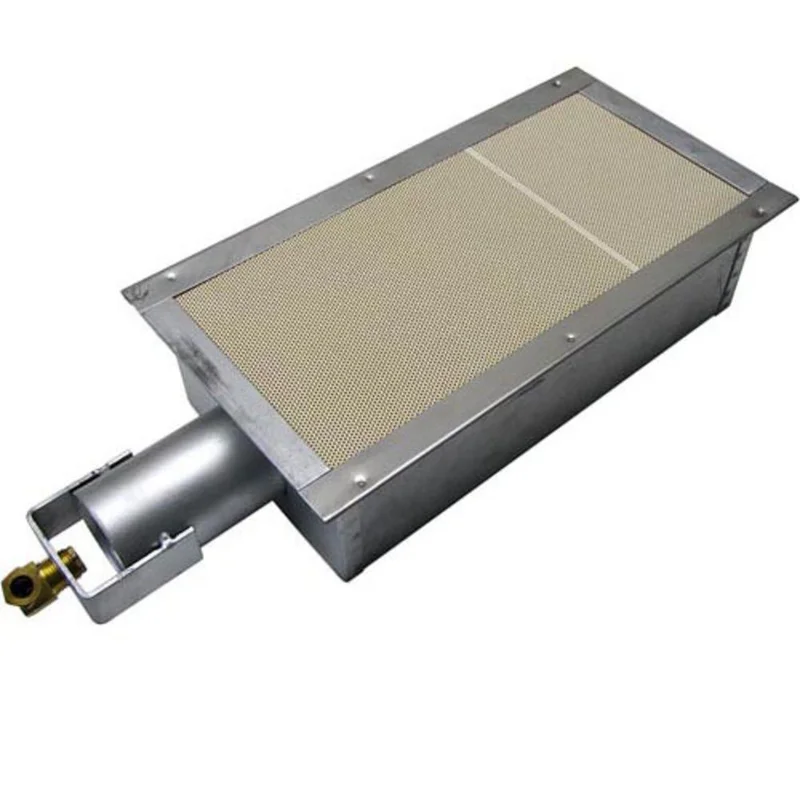

INFRA-RED BROILER BURNER;TOP OF BOX, 12-3/4″ X 7″ OD, WEIGHT 5.6 LBS.;CERAMIC AREA 11-1/4″ X 5-1/8″;BOTTOM OF BOX 11-11/16″ X 5-3/4″ X 3-3/8″H;VENTURI 2.122″ DIA OD X 2-5/16″L, W/ BRACKET 4-3/16″L;ORIFICE #48 X 3/8″ CCT;TOTAL LENGTH W/O ORIFICE 16-1/2″;AMERICAN RANGE;BROILERARCM CHEESEMELTER, AVB VERTICAL BROILER.;;***VERIFY THE SIZE OF THE BURNER THE CUSTOMER IS ORDERING -;AMERICAN RANGE HAS CONFLICTING INFORMATION ON THEIR IR;BURNERS. ;;MAY NEED PART NUMBER 263692***
